BIM software for efficiently designing cross-laminated timber walls, floors and roofs in Revit®
Wood Framing CLT lets Revit® users instantly create cross-laminated timber floor, roof slabs and wall panels of any shape or complexity. Functions are versatile, parameters easy to control, and changes occur in real time. No more drafting – just design and decide, knowing you’ll get a high-quality model.
Connectors, cuts, supports, and other details can be distributed based on predefined rules or connection types. They can then be modified or updated to suit the project design stage and the level of detail required. CLT “XL” panels (slabs) or the layout of CLT “S” panels and details can be modified and updated whenever the project is changed. Dynamic update functionality can make changes to CLT panels of the same type at once.

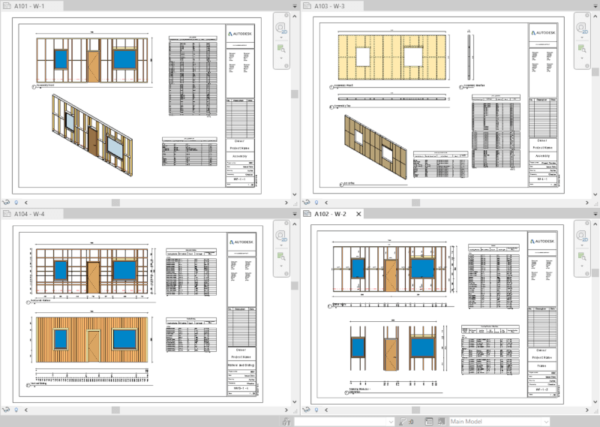

CLT Panels in the project can be easily marked based on their properties and locations in the structure model. And information for fabrication can be automatically generated with all desired views, schedules, and drawings for each CLT panel or panel layout.
