Rebar detailing tools for automated reinforcement, shop drawings and CAM-file-generation for precast concrete beams in Revit®

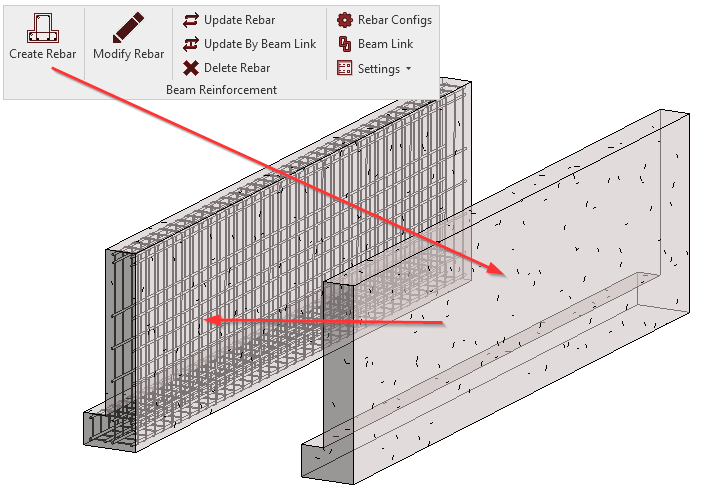

Beam Reinforcement is a feature of our Precast Concrete structural design software for Autodesk® Revit® that lets you create, update and modify reinforcement for rectangular, L and inverted T beam sections in Revit models.

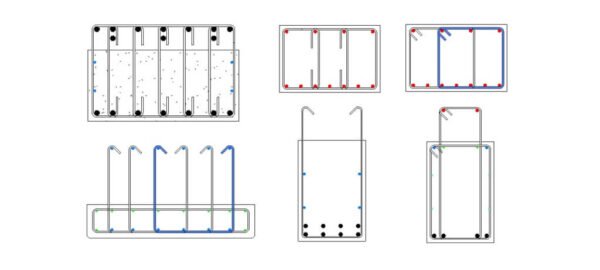

Place main reinforcement and stirrups based on rules you set in the configurations. Main rebars can have multiple top, bottom, and center rows, can be extended and have couplers. Tie selected main bars with stirrups, which can be different shapes, and distribute them along the beam, extending outside the beam if needed.
Product Page | AGACAD Beam Reinforcement |
